POST & 3 RAIL GALVANISED PADDOCK FENCING VIDEO

STEEL PADDOCK FENCING

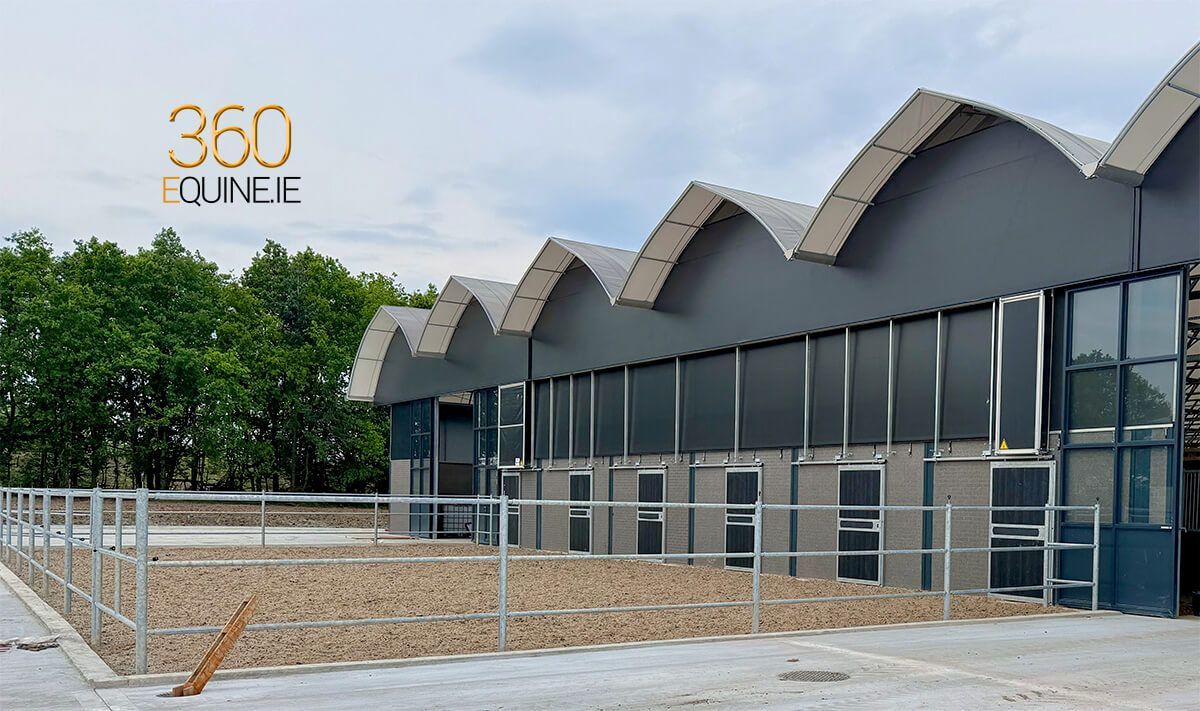

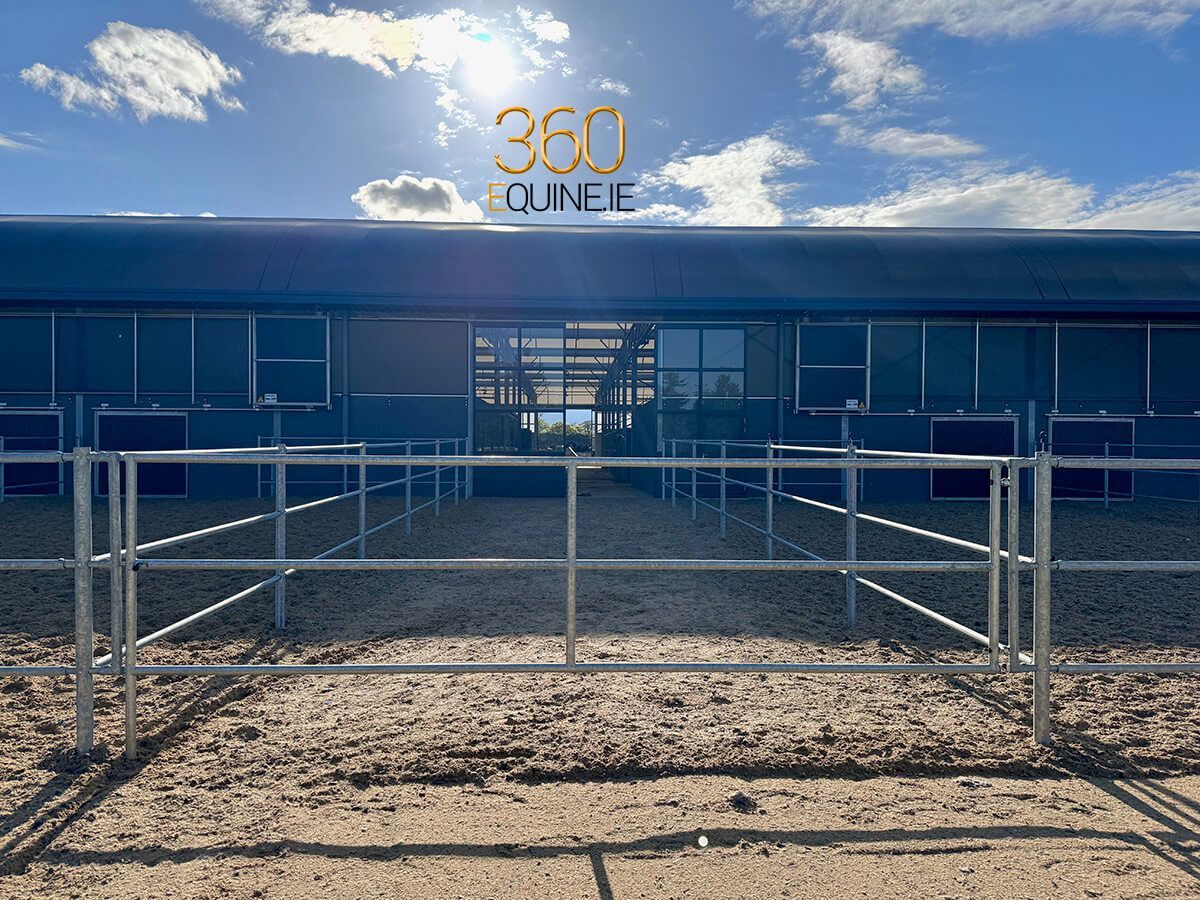

Paddocks adjoining stables

Manufactured in Europe | 360 Equine: Exclusive Agent for Ireland & Northern Ireland
Post 76 mm - | Rail 42mm tube | 2.8mm steel | Galvanised | Easy connect |
Hot-dip galvanised round tube or square posts and rails.

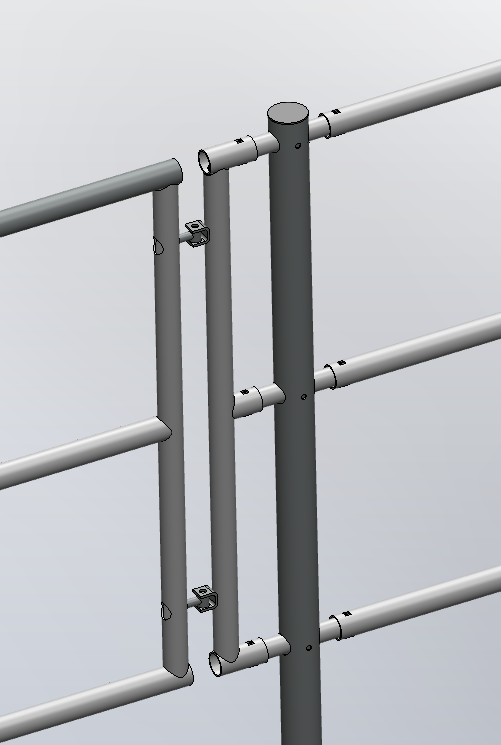

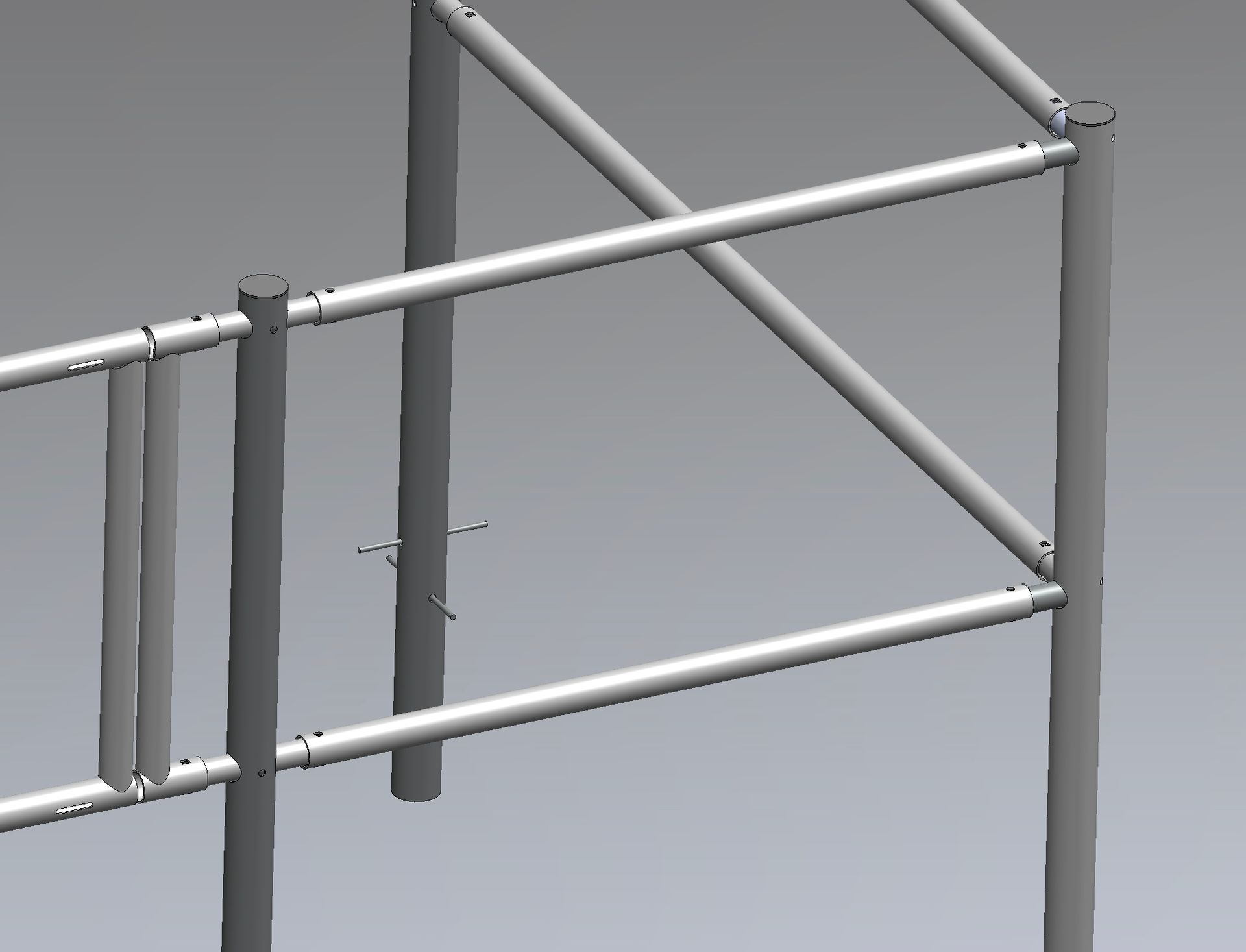

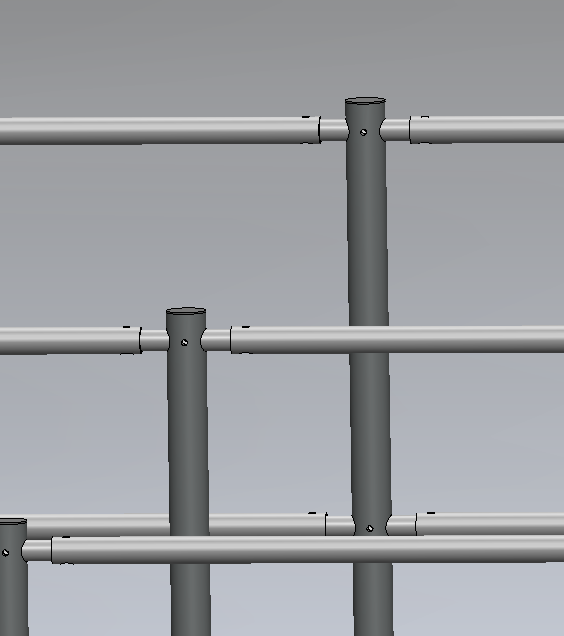

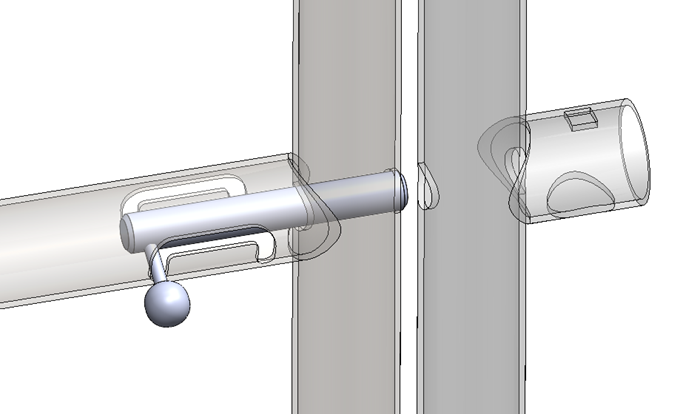

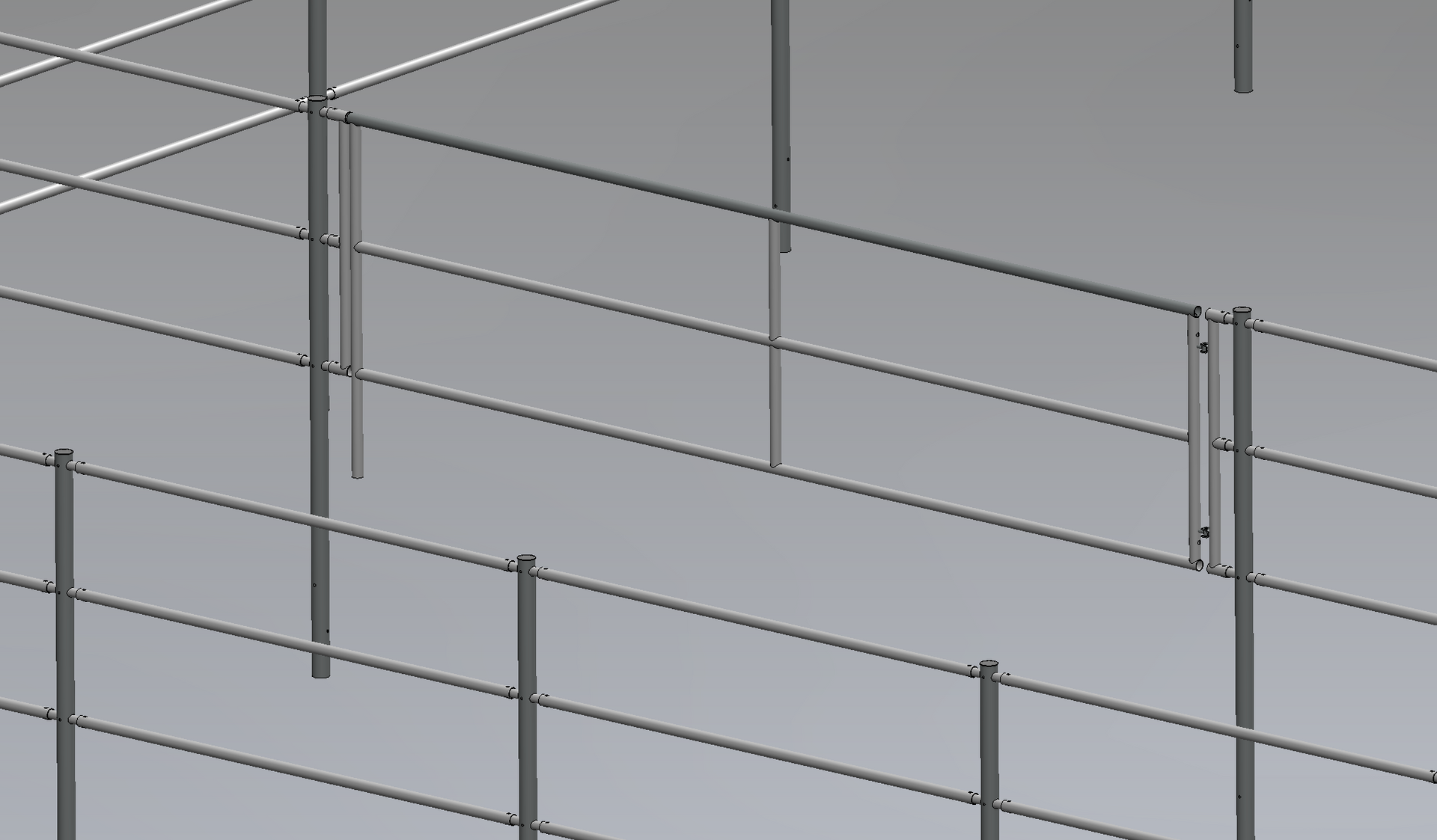

Easy connect interlocking system with clean finish fixing.
Posts set in concrete sleeves.
1.3m fence above ground 2 rail
1.7m above ground 3 rail
Plus electric fence kit.
Sections come in mainly 2.5m or 3m wide maximum. Note 3m wide will require additional cost below ground in concrete. ex ample 600mm below ground.

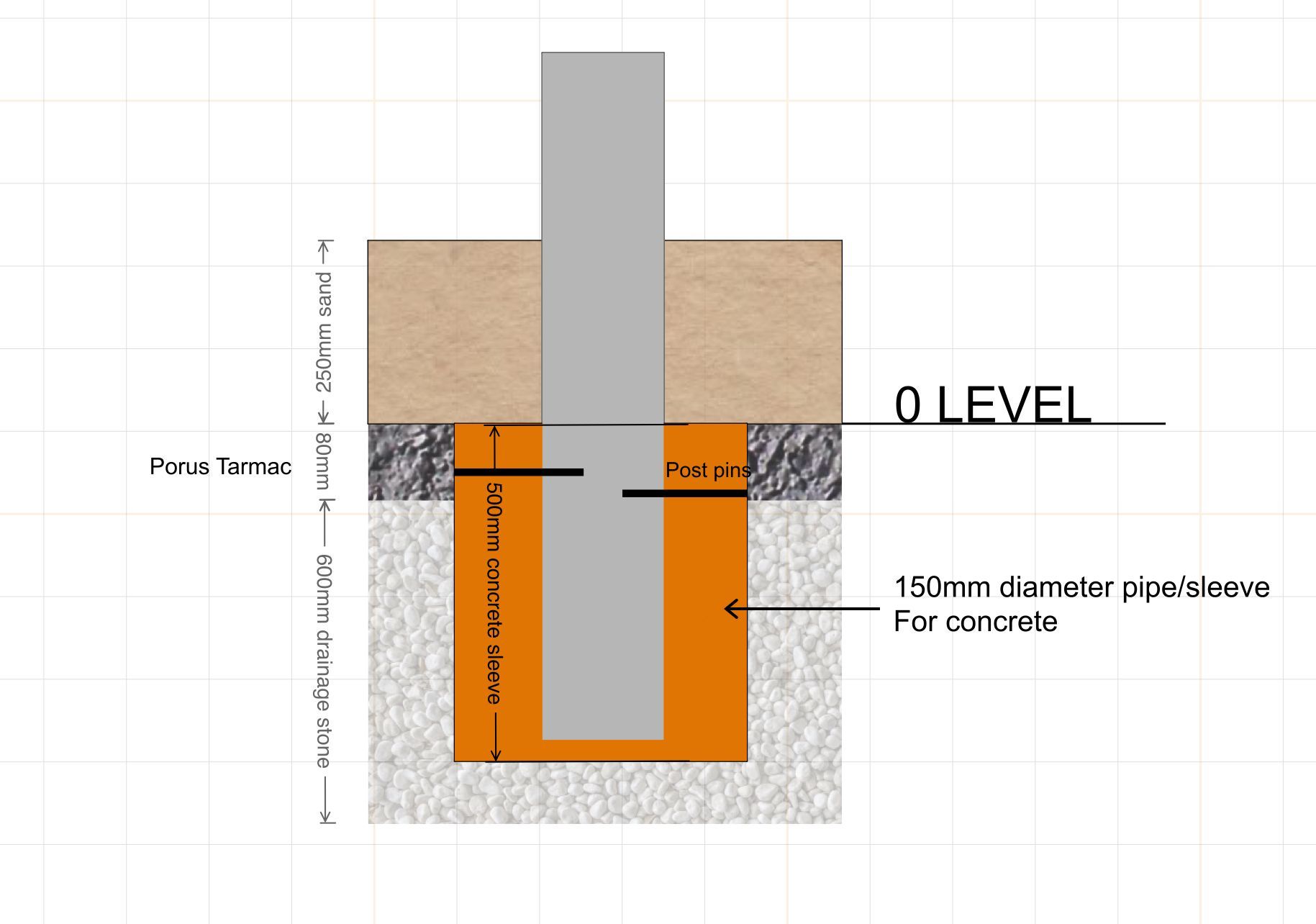

Footing

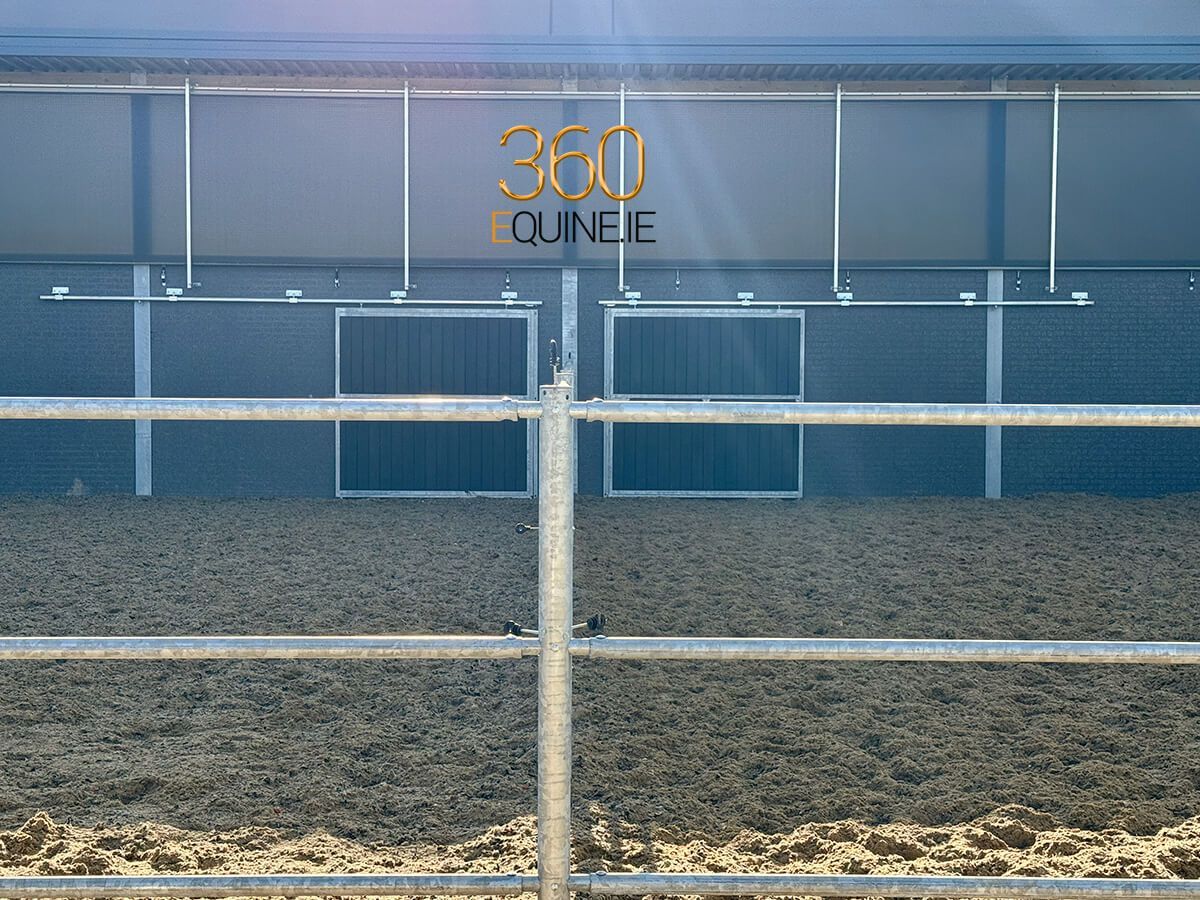

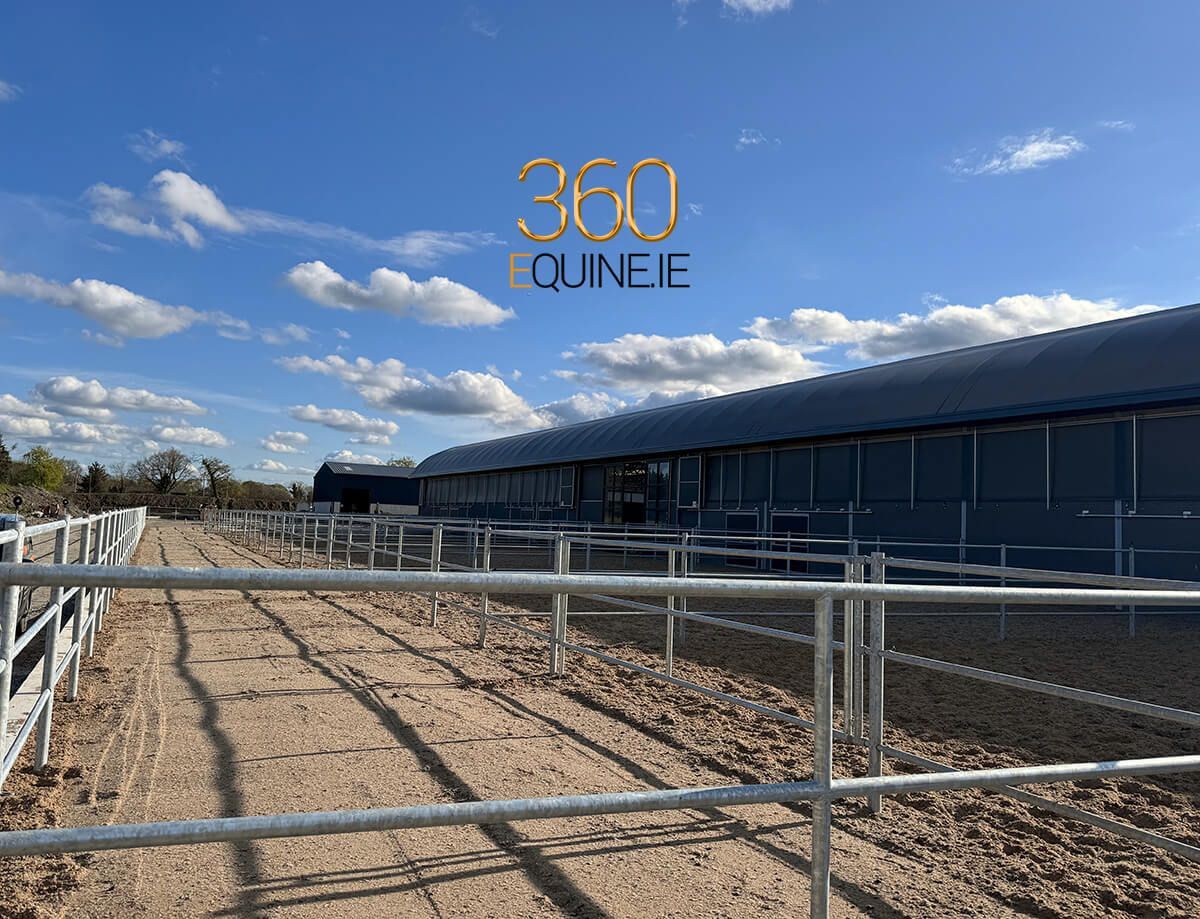

Example of a 3 rail fence with over 1.6m above sand.

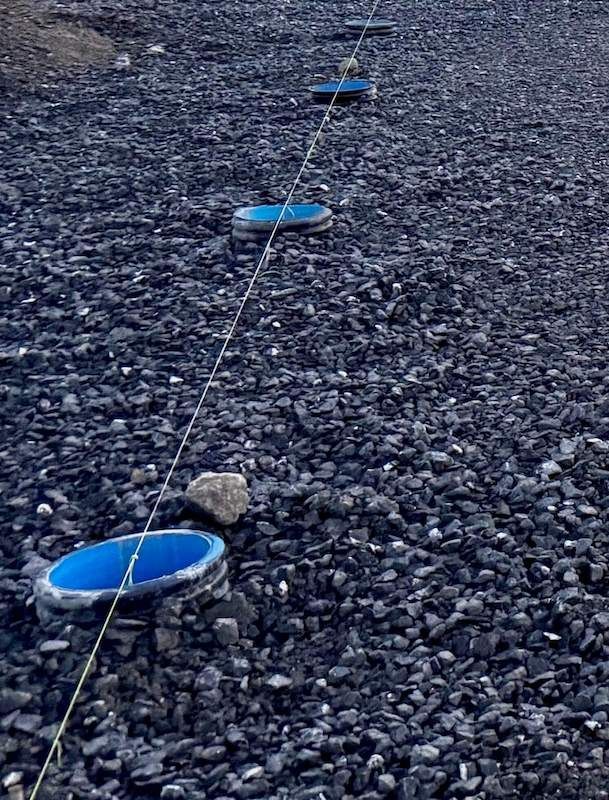

Footing Sleeves

Example of sleeve. in this case 215mm diameter

Sleeve Pins

8mm bar re-enforcing pins adjustable to secure in the sleeve before pour.

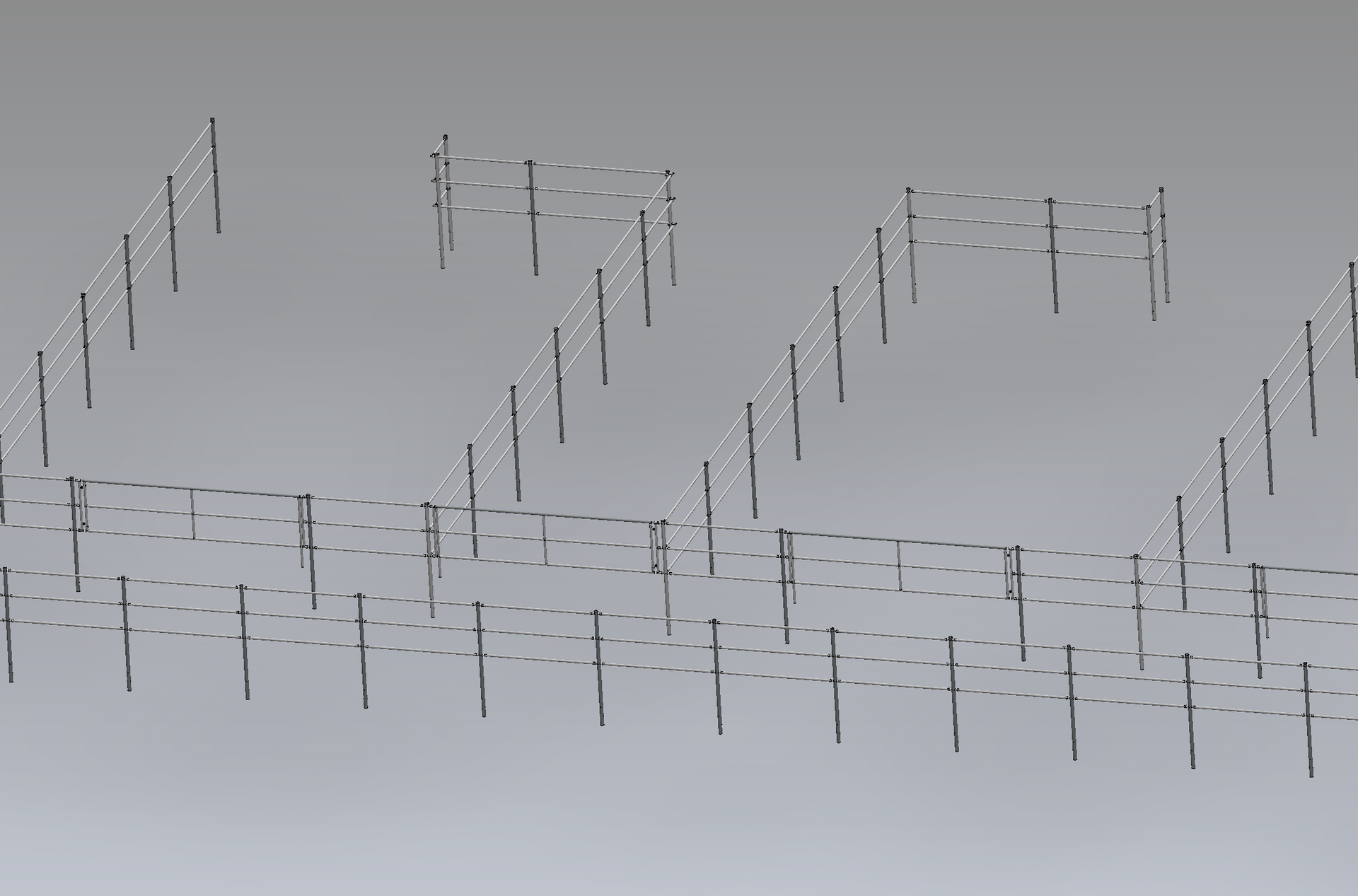

Design and Drawings

Design and layout services along with dog drawings for installers and groundworks team. Final drawings and 3d Renders are only supplied after order is made.

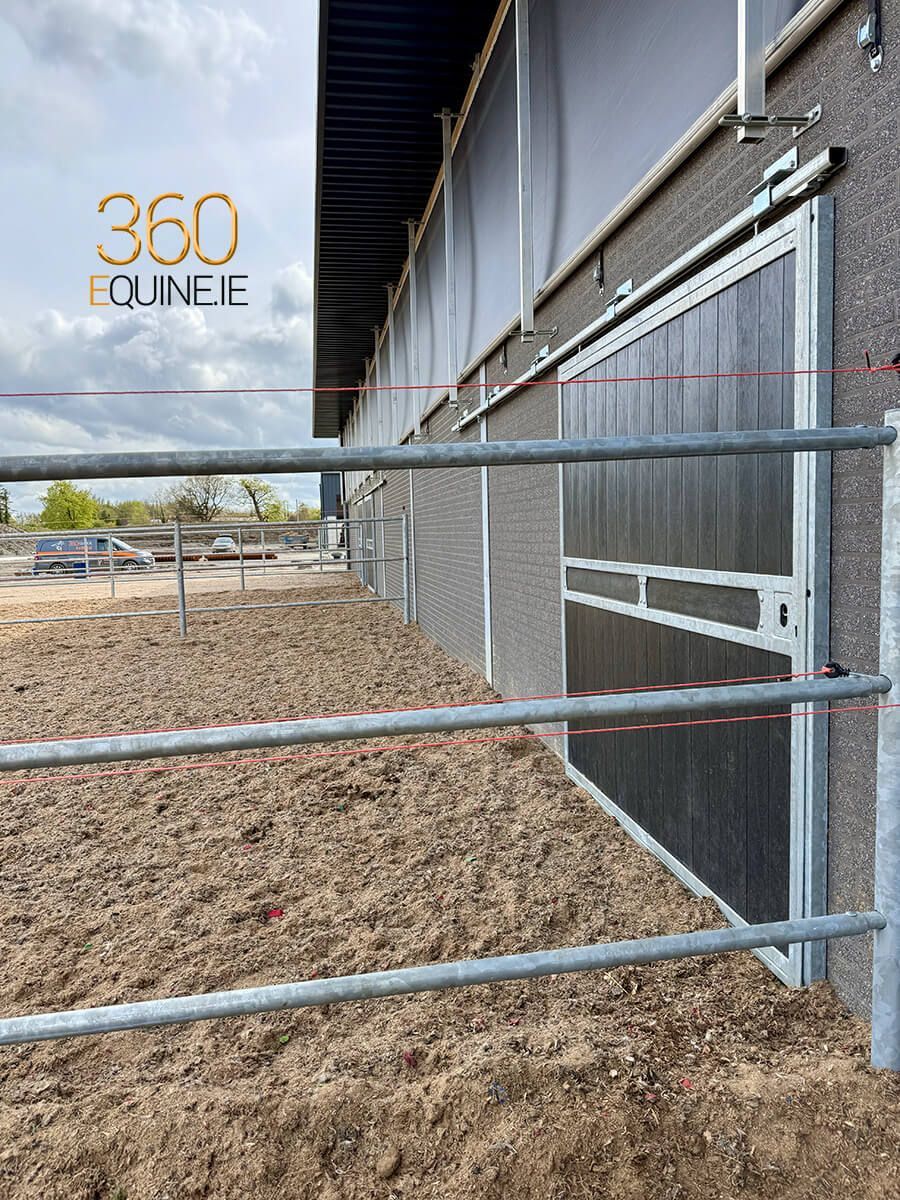

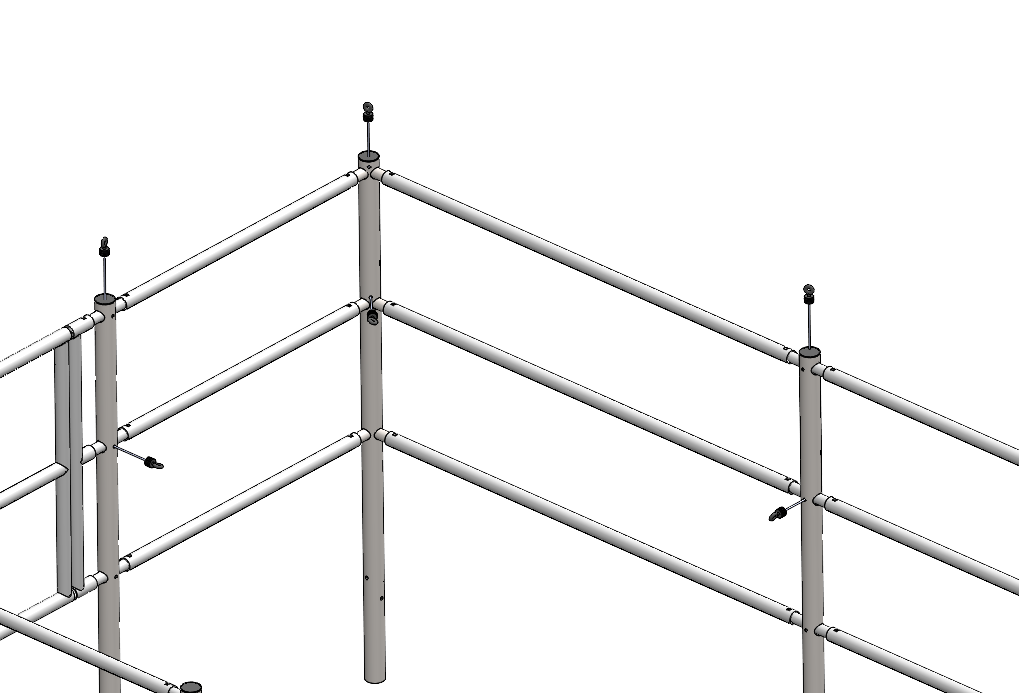

Electric Fence

Electric fence isolators can be connected in various configurations. Sitting 50mm to 150mm off or above rails.

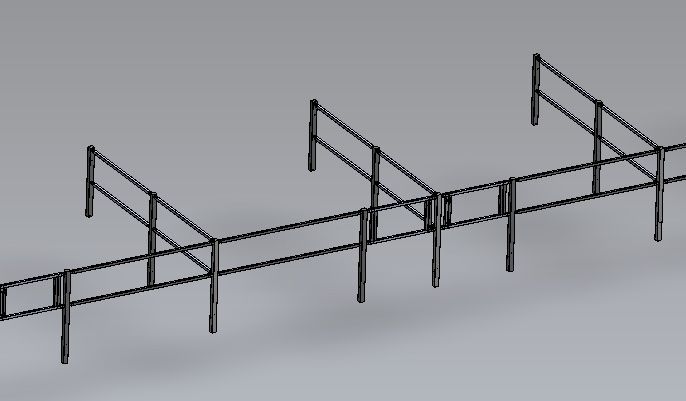

Square Profile

Square profile in Post and rail can also be supplied. Rounded corners for safety.

  • What are the section distances?

    Generally 2.5m but can go to 3m max. (From centre of post to centre of next post. Custom sizes can be done for specific sections based on the layout. For 3m sections we recommend 600mm in concrete sleeve.

  • What length are the posts?

    Generally 2m to 2.5m in lenght. Ranging from 1.3m to 1.7m height to top rail from the top of the sand.

  • What about installation?

    All units are sold on a self install basis as this is generally the most economical way to do it. However we will provide guidance and support where needed.

  • Will I get drawings and guides etc?

    Yes. You will receive a PDF and DWG layout with dimensions for your contractor. Please note these will not be supplied untill after the initial order is placed.

  • What about footings?

    You footings will be determined by how high you fence is above the top line surface such as sand. 360 will give recomendations here. Your groundworks contractor will do the levels and sleeve work here.

  • What about top surface and drainage?

    Generally you have your drainage stone with drainage pipes laid every 1.5m to 2m apart. Sleeves insterted also at this stage. Rolled and then options for pourus tarmac and teram with 150mm to 250mm of sand and fiber on top. You may opt to not ude porous tarmac but this is your decision.

  • How long does it take before I receive my order?

    Allow up to 4 weeks from payment to delivery.

  • Do I need a forklift?

    Depending on the volumeyou mayl need a forklift or a front loader to remove from the delivery truck.

  • What is your return policy?

    Unfortunately, once these units go into production there is no returning as they are made to order, so make sure you have double checked all aspects of your order with us. You can be assured that we will do everything we possible can make your order to your satisfaction.
